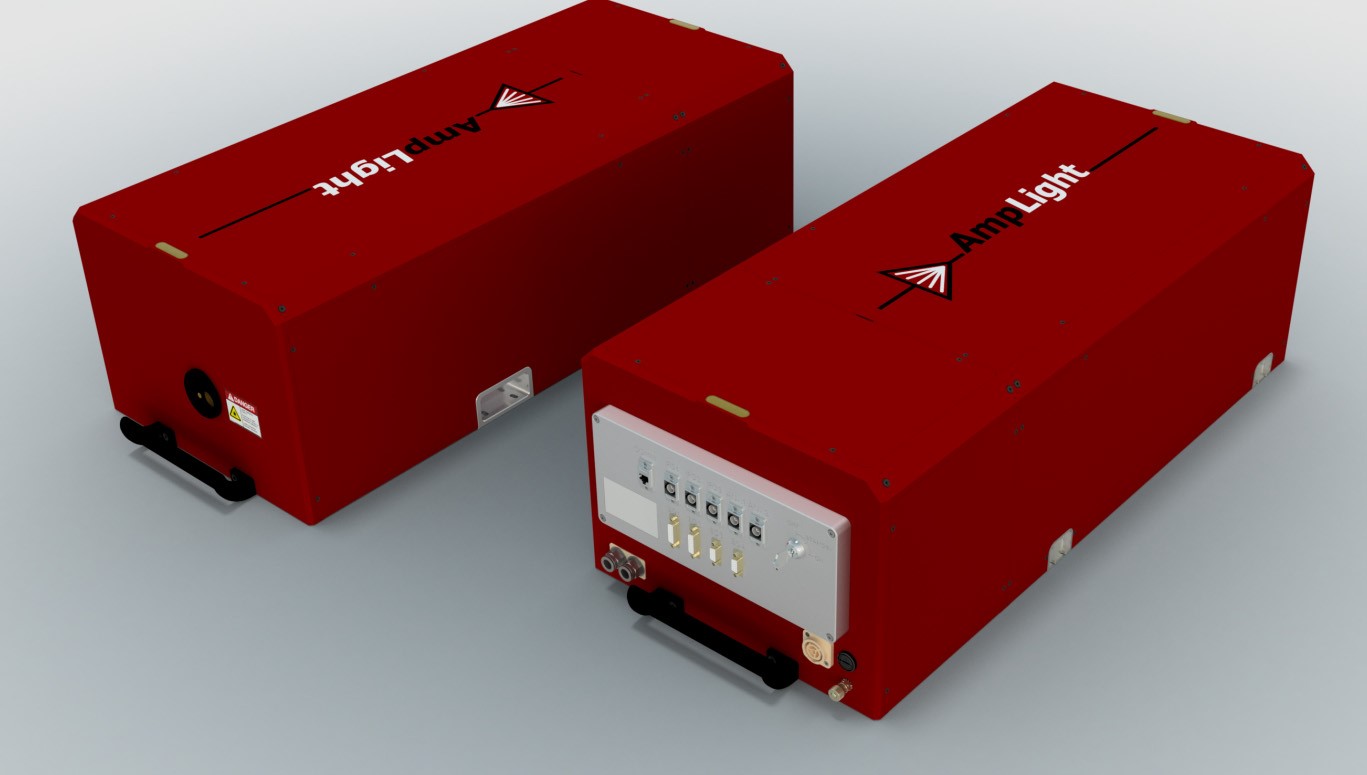

AmpNova - High-Power High-Energy Femtosecond Laser
AmpNova is our line of robust and compact ultrafast lasers that combine high average power with high pulse energy, short pulse duration and high beam quality. These lasers enable applications in both industrial areas (precision processing of semiconductor and dielectric materials and surfaces, in automotive, photovoltaic and medical device manufacturing and more) and scientific environment (ultrafast spectroscopy, time-resolved studies, driving of secondary radiation sources, strong-field physics etc.).
Features
- Maximum pulse energy of up to 6 mJ
- Maximum power of up to 100 W
- Pulse duration <150 fs
- High beam quality M2<1.3
- Pulse-on-Demand, MHz burst mode
- Optional CEP stabilization and repetition rate locking
- Compact industrial design: 884 x 395 x 290 mm3
- Maximum pulse energy of up to 6 mJ
- Maximum power of up to 100 W
- Pulse duration <150 fs
- High beam quality M2<1.3
- Pulse-on-Demand, MHz burst mode
- Optional CEP stabilization and repetition rate locking
- Compact industrial design: 884 x 395 x 290 mm3
Applications
- Advanced material processing:
- Dicing/grooving/marking/welding/drilling
- Surface functionalization
- Parallel simultaneous large-area micro-patterning
- Driving of secondary radiation sources:
- Coherent XUV via high-harmonic generation
- Pump for OP(CP)A or sources of THz radiation
- Filamentation and other strong-field physics applications
- Advanced material processing:
- Dicing/grooving/marking/welding/drilling
- Surface functionalization
- Parallel simultaneous large-area micro-patterning
- Driving of secondary radiation sources:
- Coherent XUV via high-harmonic generation
- Pump for OP(CP)A or sources of THz radiation
- Filamentation and other strong-field physics applications
Technical specifications
| Model | A-50 | A-100 |
| Center wavelength | 1030 nm ± 10 nm | 1030 nm ± 10 nm |
| Maximum pulse energy | 5 mJ | 6 mJ |
| Maximum output power | 50 W | 100 W |
| Pulse duration | < 150 fs | < 150 fs |
| Repetition rate | Single shot - 250 kHz | Single shot - 250 kHz |
| Beam quality, M2 | < 1.3 | < 1.3 |
| Beam diameter | 12 ± 0.7 mm | 12 ± 0.7 mm |
| Pulse-to-pulse stability | < 1.5% | < 2% |
| Power stability, 8h | < 1% | < 1.5% |
| Burst mode | Tunable MHz burst | Tunable MHz burst |
| Control interface | Ethernet | Ethernet |
| Water flow rate | > 6 l/min | > 7 l/min |
| AC input | 90-305 VAC | 90-305 VAC |
| Power consumption | < 1.8 kW | < 2.3 kW |

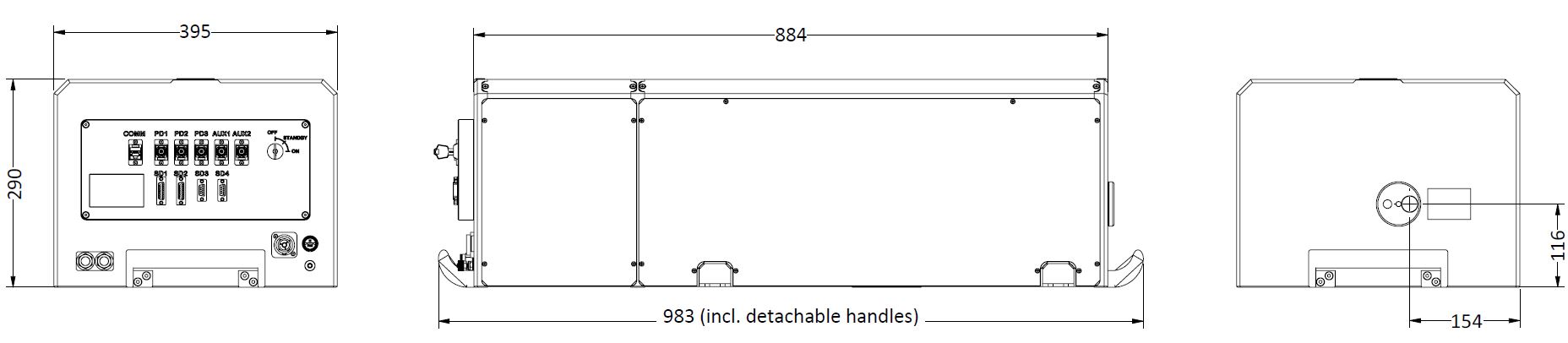

Mechanical
Dimensions (mm)

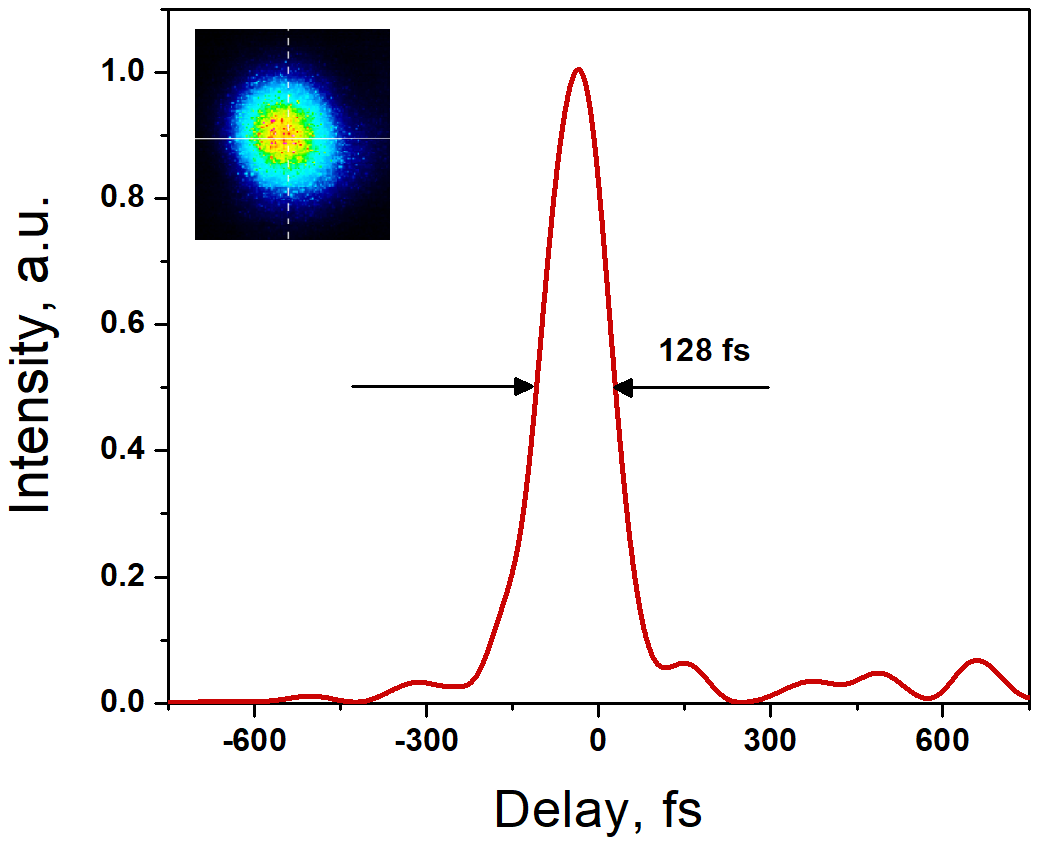

Typical pulse duration and beam profile of AmpNova A-100

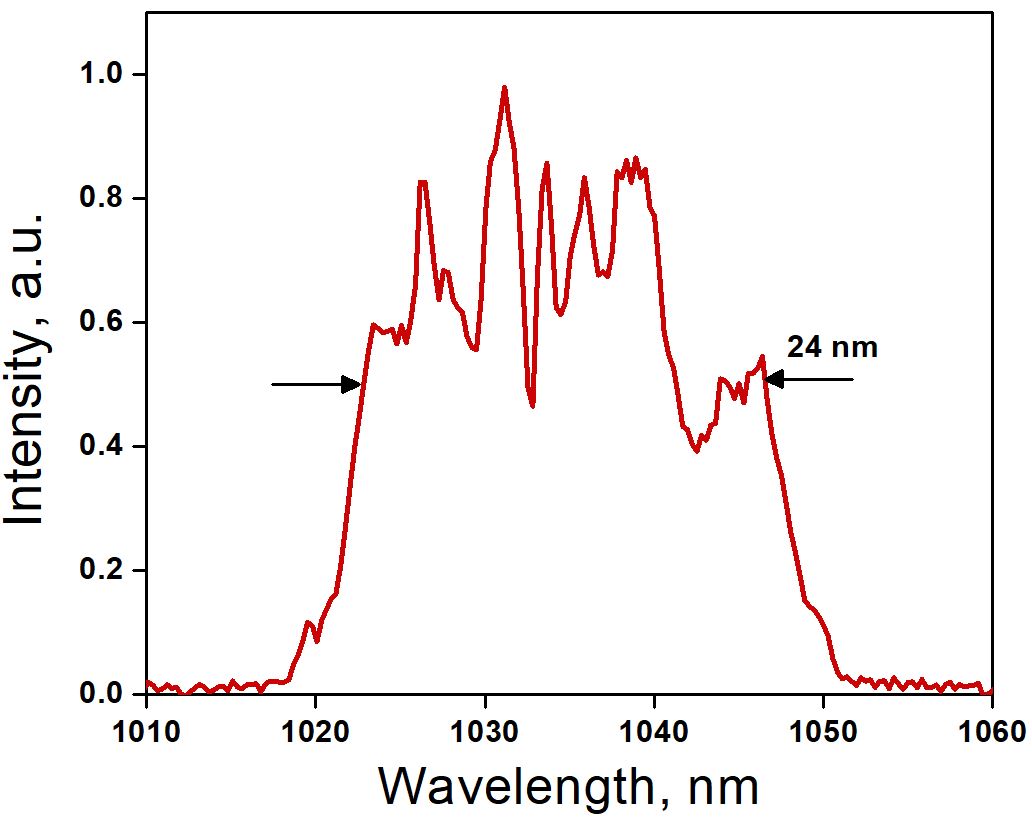

Typical output spectrum of AmpNova A-100
