CYRA Family- Cryo cooled Yb:CaF2 Regenerative Amplifier
Features
- High output energy
- > 30 mJ @ 500 Hz
- > 20 mJ @ 1 kHz
- > 2 mJ @ 10 kHz
- Direct Diode Pumped
- Monolithic Design
- Compact Layout: only 63 x 63 x 32 cm3
- High output energy
- > 30 mJ @ 500 Hz
- > 20 mJ @ 1 kHz
- > 2 mJ @ 10 kHz
- Direct Diode Pumped
- Monolithic Design
- Compact Layout: only 63 x 63 x 32 cm3
Applications
- Pumping of secondary radiation sources:
- Optical Parametric Amplifiers
- THz generators
- Simultaneous large-area laser micro-patterning
- Filamentation and other strong-field physics applications
- Pumping of secondary radiation sources:
- Optical Parametric Amplifiers
- THz generators
- Simultaneous large-area laser micro-patterning
- Filamentation and other strong-field physics applications
Description
CYRA is a chirped pulse amplification systems can be seeded by a femtosecond Yb:KGW, Yb:KYW, Yb:CaF2 or Yb:Fiber oscillator and includes diffraction grating stretcher, Yb:CaF2 regenerative amplifier (RA) and a high-efficiency diffraction grating compressor. In order to extract more energy the laser 2 crystal is cryogenically cooled below -160°C by a closed-loop refrigerator. Yb:CaF2 crystals can sustain rather broad-band gain spectrum, supporting 200-fs pulse duration, even at cryogenic temperatures. Optional oscillator cavity length stabilization is possible. The system comes with power supplies, cooling units and control electronics.
Technical specifications
| CYRA | CYRA Duo | |
| Center Wavelength | 1030 nm ± 10 nm | 1030 nm ± 10 nm |
| Pulse Enegery | > 7 mJ @ 1 kHz | > 20 mJ @ 1 kHz |
| Avarage Power | > 7 W @ 1 kHz | > 20 W @ 1 kHz |
| Pulse Duration | < 220 fs | < 220 fs |
| Repetition Rate | < 50 kHz | < 50 kHz |
| Beam Quality | M2 < 1.5 | M2 < 1.5 |
Images

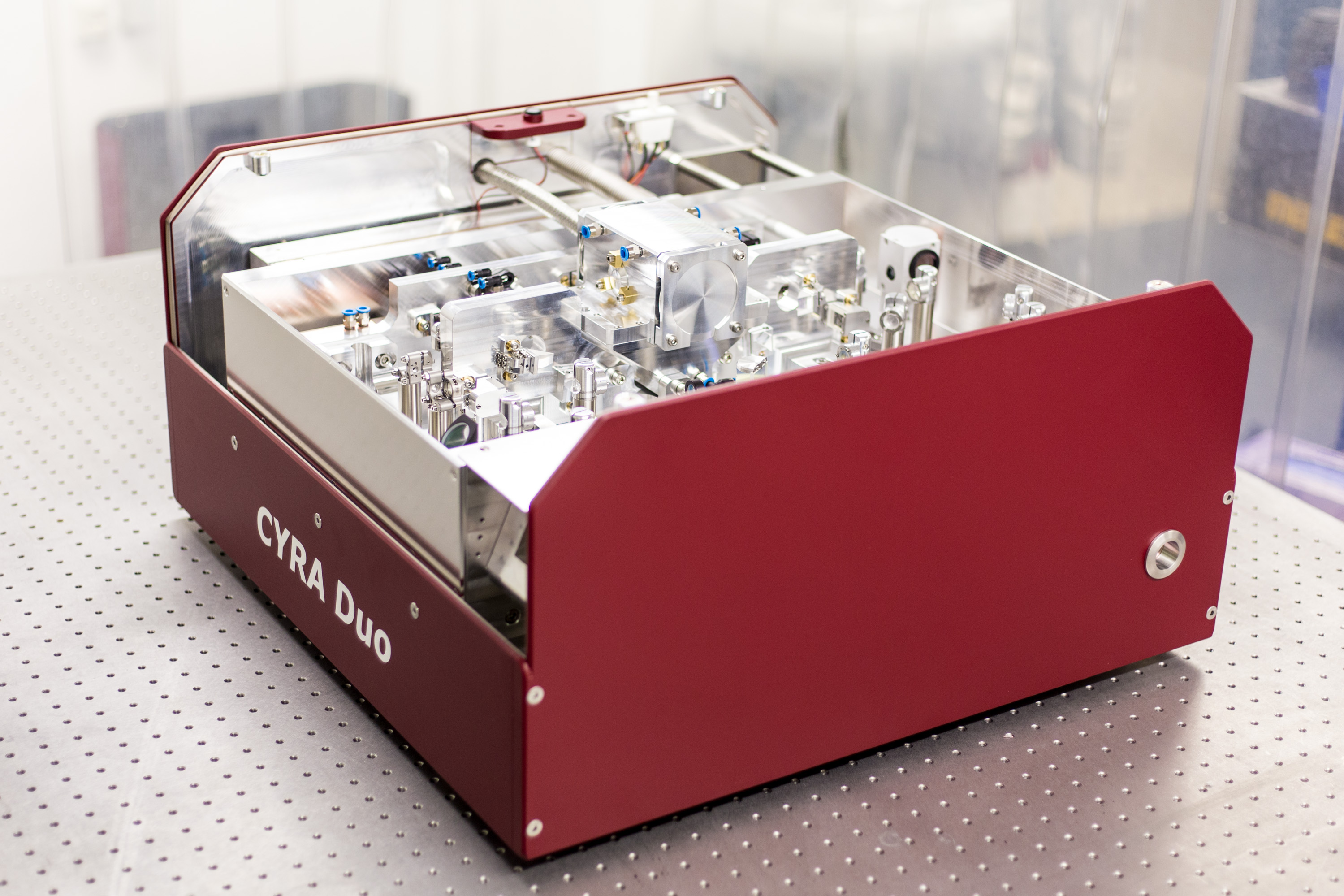

Front View with cover removed

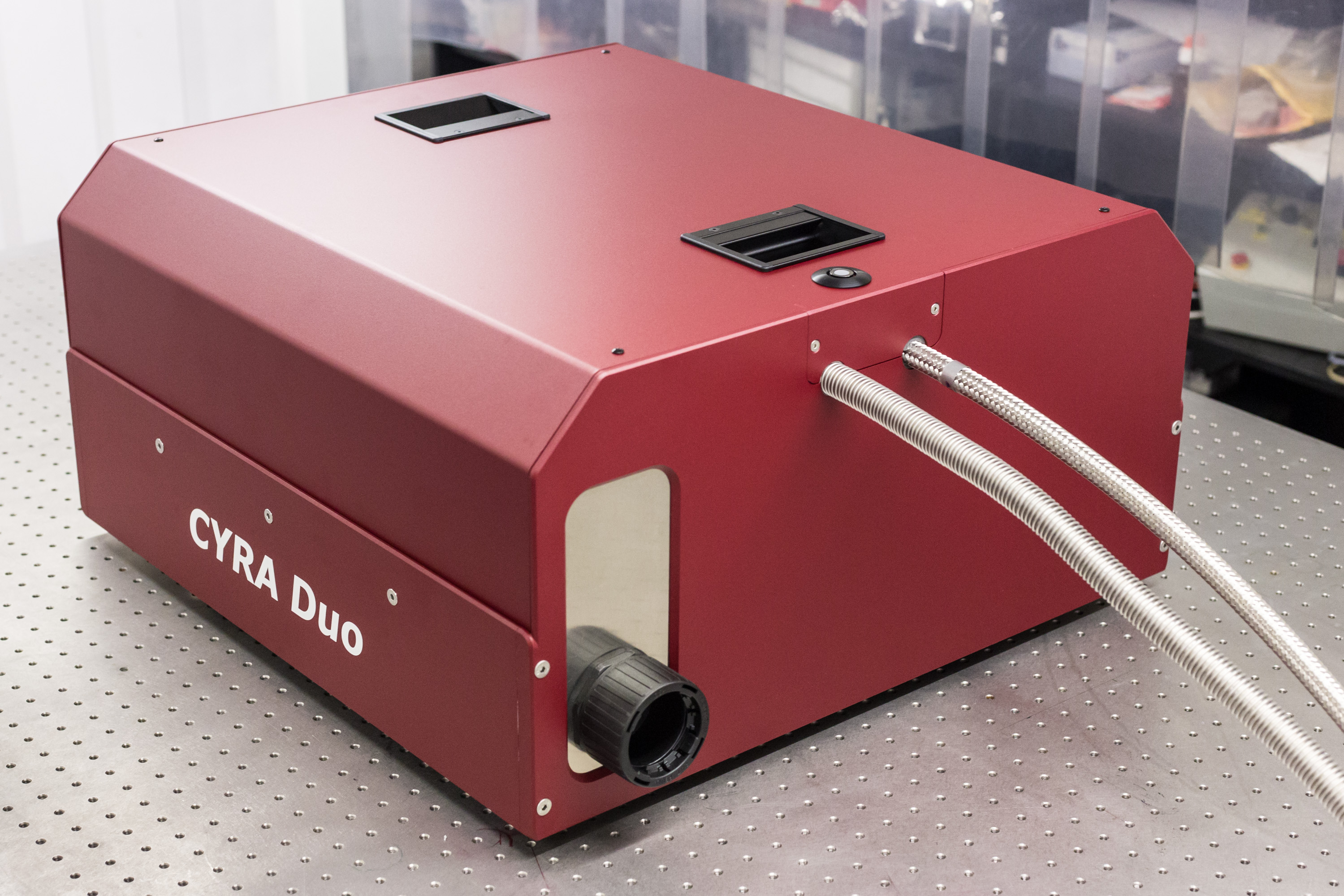

Back View with cover closed
Mechanical

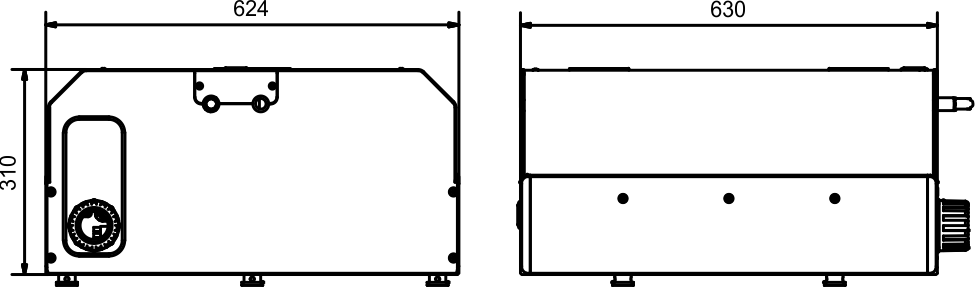

Dimensions (mm)
Application Highlights

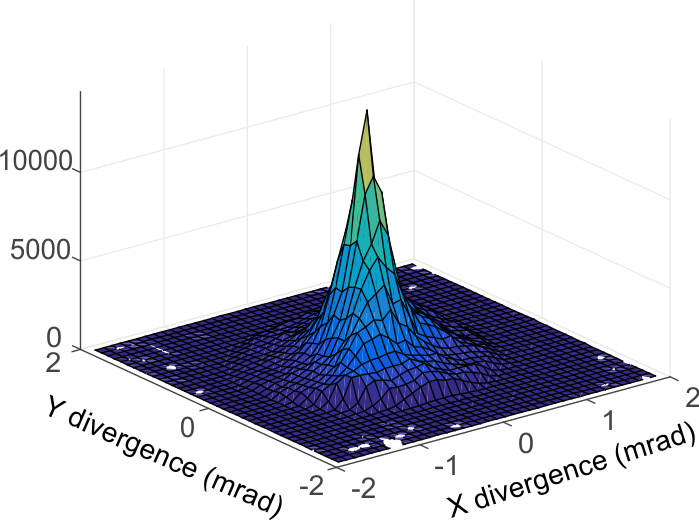

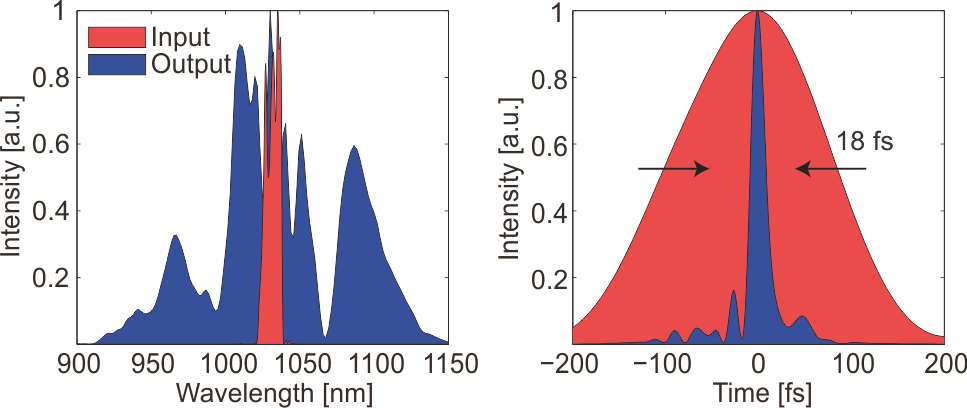

Post compression in hollow core fiber to 18 fs @ 11 mJ
Coherent high-flux soft-Xray source at Terbium N-ede (155 eV)
